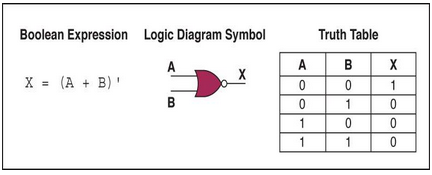

The NOR Gate is a combination of a NOT Gate and a NOR Gate. In this gate every input that is both 0 would result in an output of 1. Everything else would have a an output of 0. The breadboard below indicates the gates of 11, and 12 connected to the the GND which will result in an output of 1. The output is connected to gate number 13 which then linked to the LED which must be lighted on. Thank you for the pictures of Chapter 4 Presentation.
